zero_copy_queue.c File Reference

#include <stdlib.h>
#include "FreeRTOS.h"
#include "queue.h"
#include "mem_pool.h"
#include "zero_copy_queue.h"

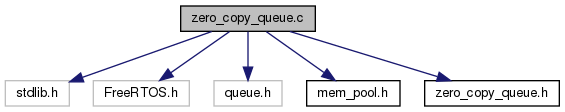

Include dependency graph for zero_copy_queue.c:

Go to the source code of this file.

Data Structures
struct	PvtZeroCopyQueue_t_

Typedefs
typedef struct PvtZeroCopyQueue_t_	PvtZeroCopyQueue_t

Functions
ZeroCopyQueue_t	ZcqCreateQueue (int ItemSize, int ItemCount, int Alignment)
void *	ZcqAllocateItem (ZeroCopyQueue_t z)
void	ZcqFreeItem (ZeroCopyQueue_t z, void *Item)
int	ZcqEnqueueItem (ZeroCopyQueue_t z, void *Item, TickType_t Timeout)
void *	ZcqDequeueItem (ZeroCopyQueue_t z, TickType_t Timeout)

Typedef Documentation

PvtZeroCopyQueue_t

typedef struct PvtZeroCopyQueue_t_ PvtZeroCopyQueue_t

Function Documentation

ZcqAllocateItem()

void* ZcqAllocateItem

(

ZeroCopyQueue_t

zcq

)

Allocate an item to use or queue.

Note that this can block, and cannnot be used from ISR context.

Parameters

zcq	A handle to a ZeroCopyQueue_t.

Returns

A pointer or NULL on failure.

Definition at line 85 of file zero_copy_queue.c.

ZcqCreateQueue()

ZeroCopyQueue_t ZcqCreateQueue	(	int	itemSize,
		int	itemCount,
		int	Alignment
	)

Create a Zero Copy Queue.

Parameters

itemSize	Maximum size of the item.
itemCount	What's the maximum number of items allowed?
Alignment	Power of 2 value denoting on which address boundary the memory will be aligned to. Must be at least sizeof(unsigned char *).

Returns

A Handle to the ZeroCopyQueue, or NULL on failure.

Definition at line 55 of file zero_copy_queue.c.

ZcqDequeueItem()

void* ZcqDequeueItem	(	ZeroCopyQueue_t	zcq,
		TickType_t	Timeout
	)

Dequeue an item from ZcqEnqueueItem().

Parameters

zcq	A handle to a ZeroCopyQueue_t.
Timeout	Timeout in FreeRTOS ticks.

Returns

An item obtained from ZcqAllocateItem() on success. NULL on failure.

Definition at line 130 of file zero_copy_queue.c.

ZcqEnqueueItem()

int ZcqEnqueueItem	(	ZeroCopyQueue_t	zcq,
		void *	item,
		TickType_t	Timeout
	)

Queue an item obtained from ZcqAllocateItem().

Parameters

zcq	A handle to a ZeroCopyQueue_t.
item	An item obtained from ZcqAllocateItem().
Timeout	Timeout in FreeRTOS ticks.

Returns

1 on success, 0 on failure.

Definition at line 113 of file zero_copy_queue.c.

ZcqFreeItem()

void ZcqFreeItem	(	ZeroCopyQueue_t	zcq,
		void *	item
	)

Free a previously allocated item back into the base pool.

Note

This can block, and cannnot be used from ISR context.

There is no check that the memory passed in is valid.

Parameters

zcq	A handle to a ZeroCopyQueue_t.
item	An item obtained from ZcqAllocateItem().

Definition at line 100 of file zero_copy_queue.c.
